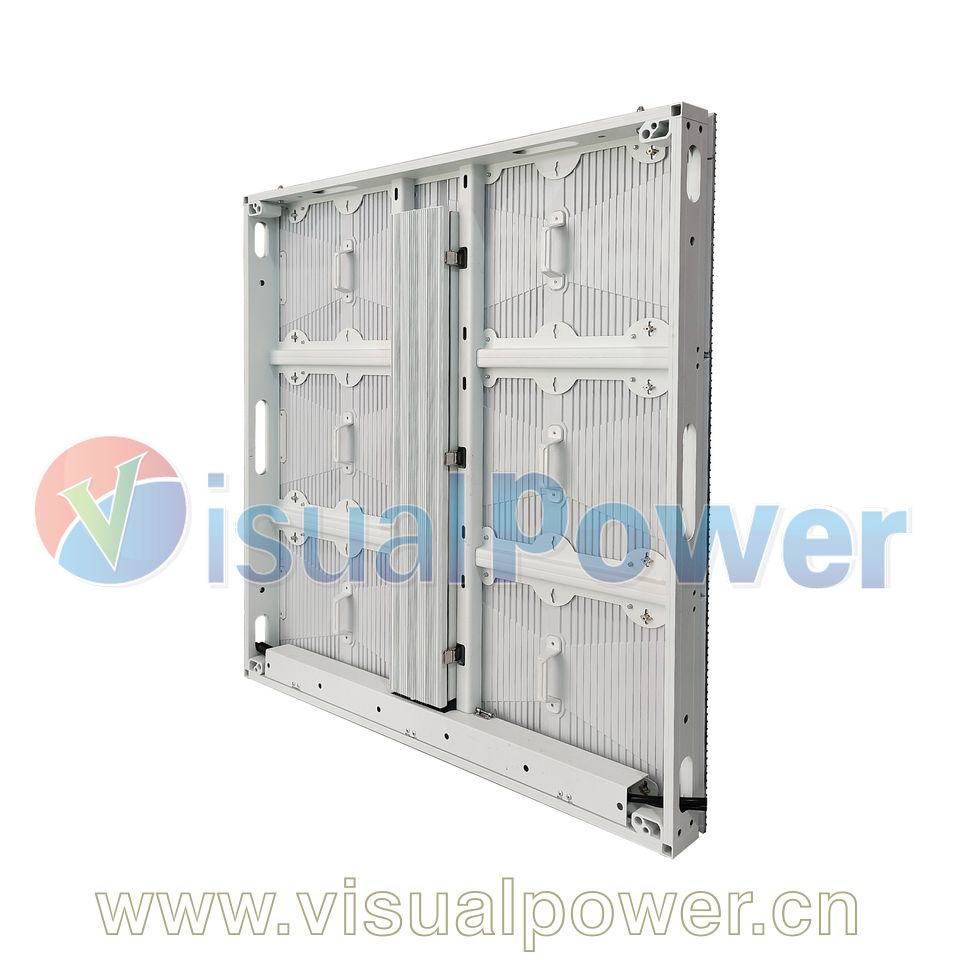

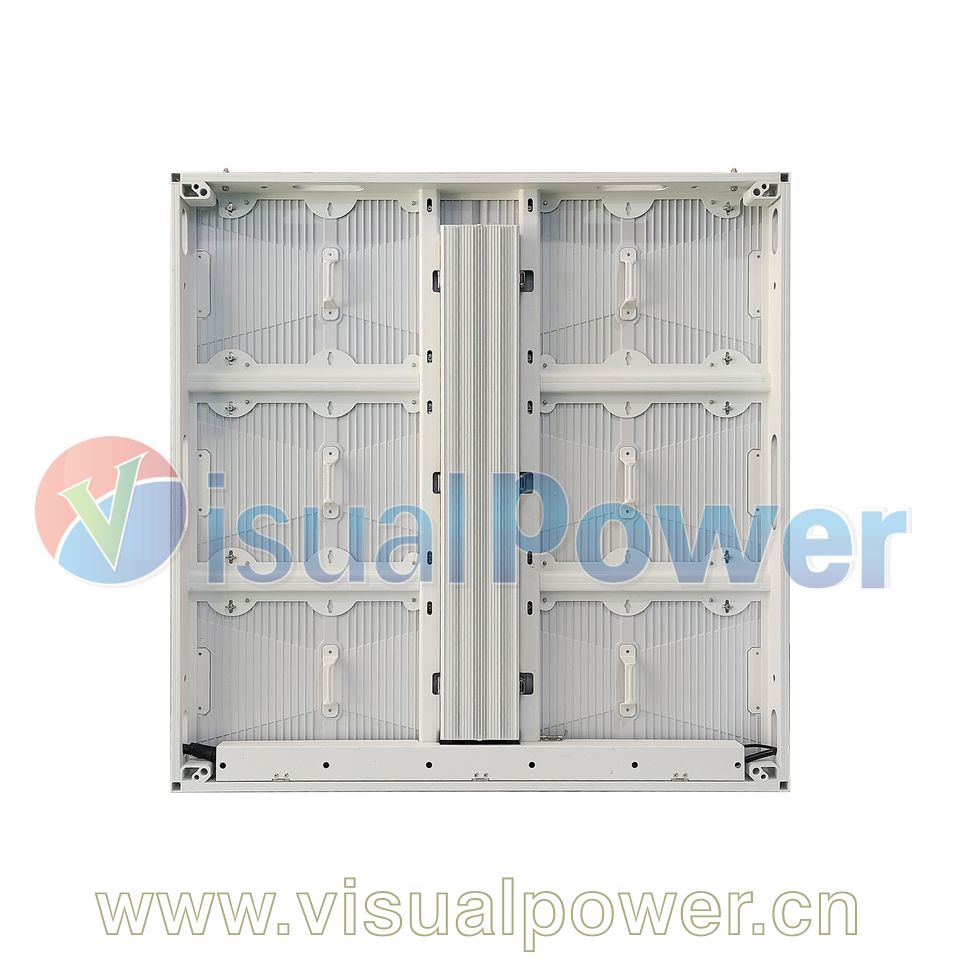

    • ALE series 960-960mm outdoor energy saving dual maintenance LED display

    CATEGORY AND TAGS:
    Fixed LED Display , , , , , , , , , ,

    Aluminum cabinet and Aluminum housing modules

    Energy saving design

    support both front and back service.

    suitable for hot and humid area

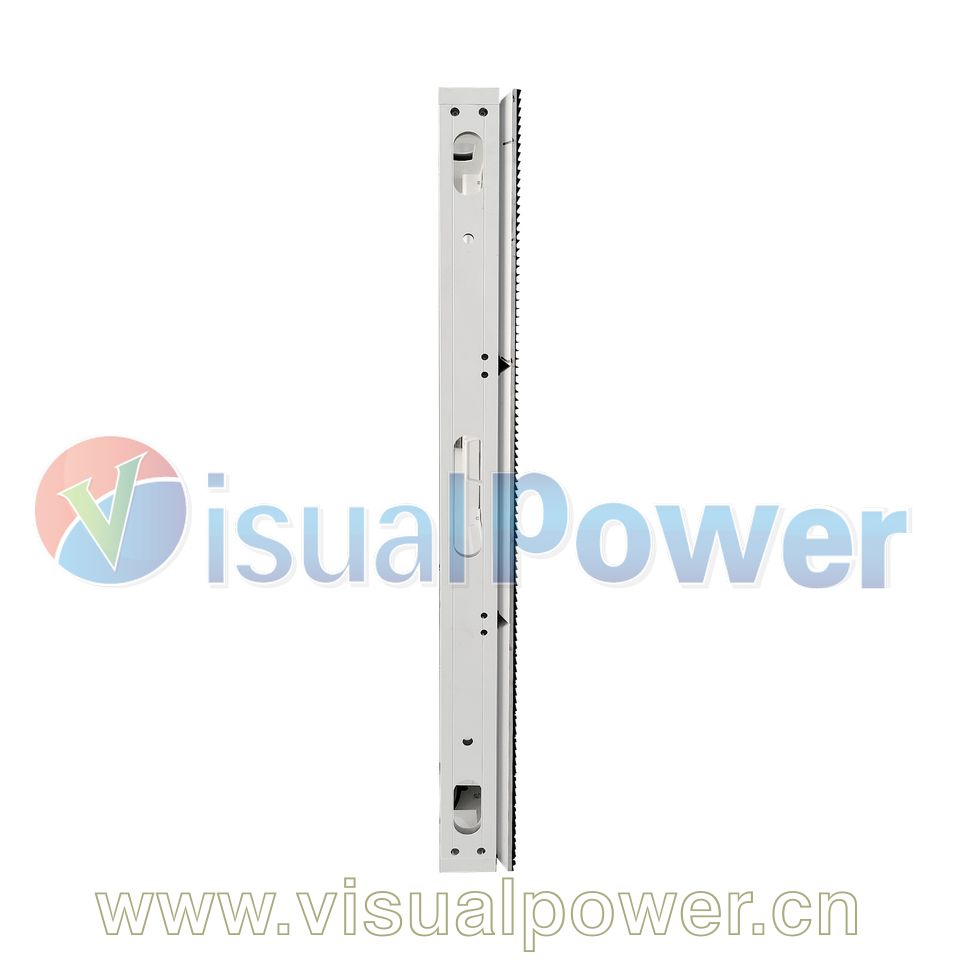

    slim cabinet design

    all parts front service, front install

    Downloadenquiry
    • Description
    • Specification
    • video show

    ALE means “aluminum energy saving display”

    It is suitable for high corrosion, hot weather and high humidity area. It is a design for harsh enviroment such as middle east area, beach area .etc.

    All the modules are designed to be water-proof IP67 level and support both front and back service, which can save much space for wall mount displays. and also gives it a clean and neat look.



    standar aluminum die casting cabinet of  960*960mm



    by aluminum profile cabinet, it can do customzied cabinet size based on the module size of W480*H320mm. such as  W960*H640mm



    Multi-dimension cabinet available: 960*960mm, 1440*960mm, 960*640mm for customized size LED displays.

    rectangle or curved corner outdoor 3D display supported.

    Model ALE series ALE series ALE series ALE series ALE series
    Pixel Pitch（mm） 4.4 5.7 6.67 8 10
    Pixel Composition（SMD） 1921 2727 2727 2727 3535
    Module Resolution（W×H） 108*72 84*56 72*48 60*40 48*32
    Module Size（mm） 480*320*15 480*320*15 480*320*17 480*320*17 480*320*16
    Module Weight（Kg） 2 2 2 2 2
    Module Qty/Cabinet 2*3 2*3 2*3 2*3 2*3
    Cabinet Size（mm） 960*960*78 960*960*78 960*960*78 960*960*78 960*960*78
    Cabinet Resolution（W×H） 216*216 168*168 144*144 120*120 96*96
    Cabinet Area（m²） 0.92 0.92 0.92 0.92 0.9216
    Cabinet Weight（Kg） 26.5 26.5 26.5 26.5 26.5
    Cabinet Material Profile Aluminum Profile Aluminum Profile Aluminum Profile Aluminum Profile Aluminum
    Cabinet Density（dot/m²） 50625 30625 22500 22500 10000
    IP Rating IP66 IP66 IP66 IP66 IP66
    Single Dot Brightness adjustment Yes Yes Yes Yes Yes
    Single Dot Color adjustment
    White Balance Brightness（cd/m²） 5000 5500 6500 6500 7000
    Color Temperature（K） 6500-9000 6500-9000 6500-9000 6500-9000 6500-9000
    Visual Angle（H/V） 160°/140° 160°/140° 160°/140° 160°/140° 160°/140°
    Contrast Ratio 8000:1 17000：1 17000：1 17000：1 18000：1
    The Max Power Consumption（W/m²） 450 450 450 450 450
    Average Power Consumption（W/m²） 150 150 150 150 150
    Input Voltage （V） 110-240 110-240 110-240 110-240 110-240
    Working Voltage （V） DC3.8+DC2.8V DC3.8+DC2.8V DC3.8+DC2.8V DC3.8+DC2.8V DC3.8+DC2.8V
    Maintenance way Front and Rear Front and Rear Front and Rear Front and Rear Front and Rear
    Frequency 50&60 50&60 50&60 50&60 50&60
    Scan number（Constant Current） 1/9s 1/7s 1/6s 1/2s 1/2s
    Grayscale 65536 65536 65536 65536 65536
    Refreshing rate（Hz） 3840 3840 3840 3840 3840
    Color Processing 14-16bit 14-16bit 14-16bit 14-16bit 14-16bit
    Lifespan to 50% brightness（h） 100000 100000 100000 100000 100000
    Work Temperature/Humidity -10℃-50℃/10%RH-98%RH (Non Condensing) -10℃-50℃/10%RH-98%RH (Non Condensing) -10℃-50℃/10%RH-98%RH (Non Condensing) -10℃-50℃/10%RH-98%RH (Non Condensing) -10℃-50℃/10%RH-98%RH (Non Condensing)
    Storage Temperature/Humidity -20℃-60℃/10%RH-98%RH (Non Condensing) -20℃-60℃/10%RH-98%RH (Non Condensing) -20℃-60℃/10%RH-98%RH (Non Condensing) -20℃-60℃/10%RH-98%RH (Non Condensing) -20℃-60℃/10%RH-98%RH (Non Condensing)
    Signal input DVI  HDMI or other DVI  HDMI or other DVI  HDMI or other DVI  HDMI or other DVI  HDMI or other

    ALE series outdoor aluminum energy saving led display
