MCX960 series outdoor front service LED display

CATEGORY AND TAGS:
Fixed LED Display , , ,
enquiry
  • Description
  • Specification

Visualpower 960*960mm dual maintenance LED display design uses standard aluminum die casting cabinet, with standard 320*320mm compatible for different pixel pitch.

it can be used for all kinds of outdoor LED signage applications.

The modules support both front and back service, suitable for wall mount displays, single post led displays. it can leave back maintenance space or not.

All the cables can go through the cabinets side, all cables hidden inside the cabinets.

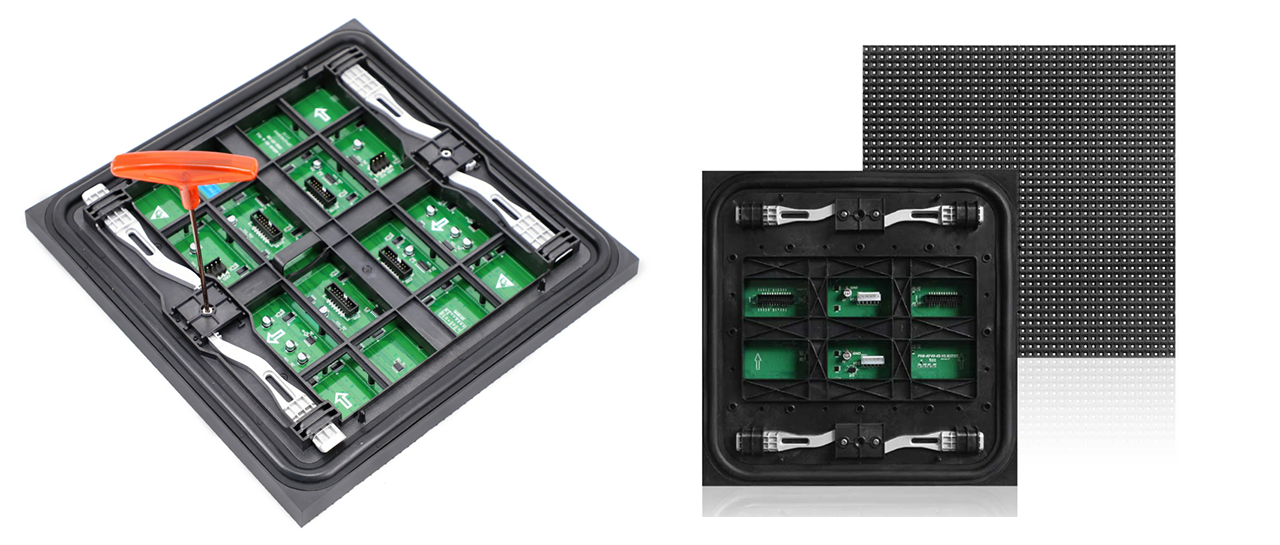

Uniform size of 320*320mm front service module by hex wrench.

Visualpower Outdoor Dual maintenance Fixed Installation 320-320mm LED Display Series
Model P4 P5.33 P6.67 P8 P10
Pixel pitch 4.0mm 5.33mm 6.667mm 8.0mm 10.0mm
Pixel configuration SMD1921 SMD1921 SMD2727 SMD3535 SMD3535
LED brand Nationstar Nationstar Nationstar Nationstar Nationstar
Driver IC ICN2153 ICN2153 ICN2153 ICN2153 ICN2153
Cabinet Type Aluminum die casting dual maintenance Aluminum die casting dual maintenance Aluminum die casting dual maintenance Aluminum die casting dual maintenance Aluminum die casting dual maintenance
Scan rate 1/8 scanning, constant current 1/7-8 scanning, constant current 1/6 scanning, constant current 1/5 scanning, constant current 1/2 scanning, constant current
Module size （W×H) 320*320MM 320*320MM 320*320MM 320*320MM 320*320MM
Resolution per module W80 x H 80pixels W60 x H 60pixels W48 x H 48pixels W40 x H 40pixels W32 x H 32pixels
Standard cabinet dimension(W×H×D) 960×960×110mm 960×960×110mm 960×960×110mm 960×960×110mm 960×960×110mm
Pixel resolution/cabinet (W×H) 240 x 240pixels 180 x 180pixels 144 x 144pixels 120 x 120pixels 96 x 96pixels
Resolution/sqm 62500 dots/㎡ 35200 dots/㎡ 22,477 dots/㎡ 15625 dots/㎡ 10000 dots/㎡
Minimum viewing distance Minimum 4 meters Minimum 5 meters Minimum 6 meters Minimum 8 meters Minimum 10 meters
Brightness 6000cd/sqm 5500cd/sqm 6000cd/sqm 6000cd/sqm 6800cd/sqm
Gray scale 16 bit, 8192 steps 16 bit, 8192 steps 16 bit, 8192 steps 16 bit, 8192 steps 16 bit, 8192 steps
Color Number 281 trillion 281 trillion 281 trillion 281 trillion 281 trillion
Module Display port HUB75E HUB75E HUB75E HUB75E HUB75E
Display Mode Synchronous with video source Synchronous with video source Synchronous with video source Synchronous with video source Synchronous with video source
Refresh rate 3840HZ 3840HZ 3840HZ 3840HZ 3840HZ
Viewing angle(degree) H/160,V/140 H/160,V/140 H/160,V/140 H/160,V/140 H/160,V/140
Temperature range -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃
Ambient Humidity 10%-99% 10%-99% 10%-99% 10%-99% 10%-99%
Service access front and rear front and rear front and rear front and rear front and rear
Standard cabinet weight 30kgs/㎡ 30kgs/㎡ 30kgs/㎡ 30kgs/㎡ 30kgs/㎡
Max.current/module 15A 14A 13A 13A 15A
Max.Power Consumption 800w/sqm 700 w/sqm 635 w/sqm 635 w/sqm 800 w/sqm
Ave. Power Consumption 250W/sqm 250W/sqm 250W/sqm 200W/sqm 250W/sqm
Protection Level Front: IP65  Rear: IP54 Front: IP65  Rear: IP54 Front: IP65  Rear: IP54 Front: IP65  Rear: IP54 Front: IP65  Rear: IP54
Lifetime to 50% brightness 75,000hr 75,000hr 75,000hr 75,000hr 75,000hr
LED Failure Rate <0,00001 <0,00001 <0,00001 <0,00001 <0,00001
MTBF > 10.000 hours > 10.000 hours > 10.000 hours > 10.000 hours > 10.000 hours
Input power cable AC110V /220V AC110V /220V AC110V /220V AC110V /220V AC110V /220V
Signal input DVI, HDMI DVI, HDMI DVI, HDMI DVI, HDMI DVI, HDMI
