    • ATL-B series event rental LED display

    CATEGORY AND TAGS:
    Event rental led display , , , , , , ,

    event rental LED display

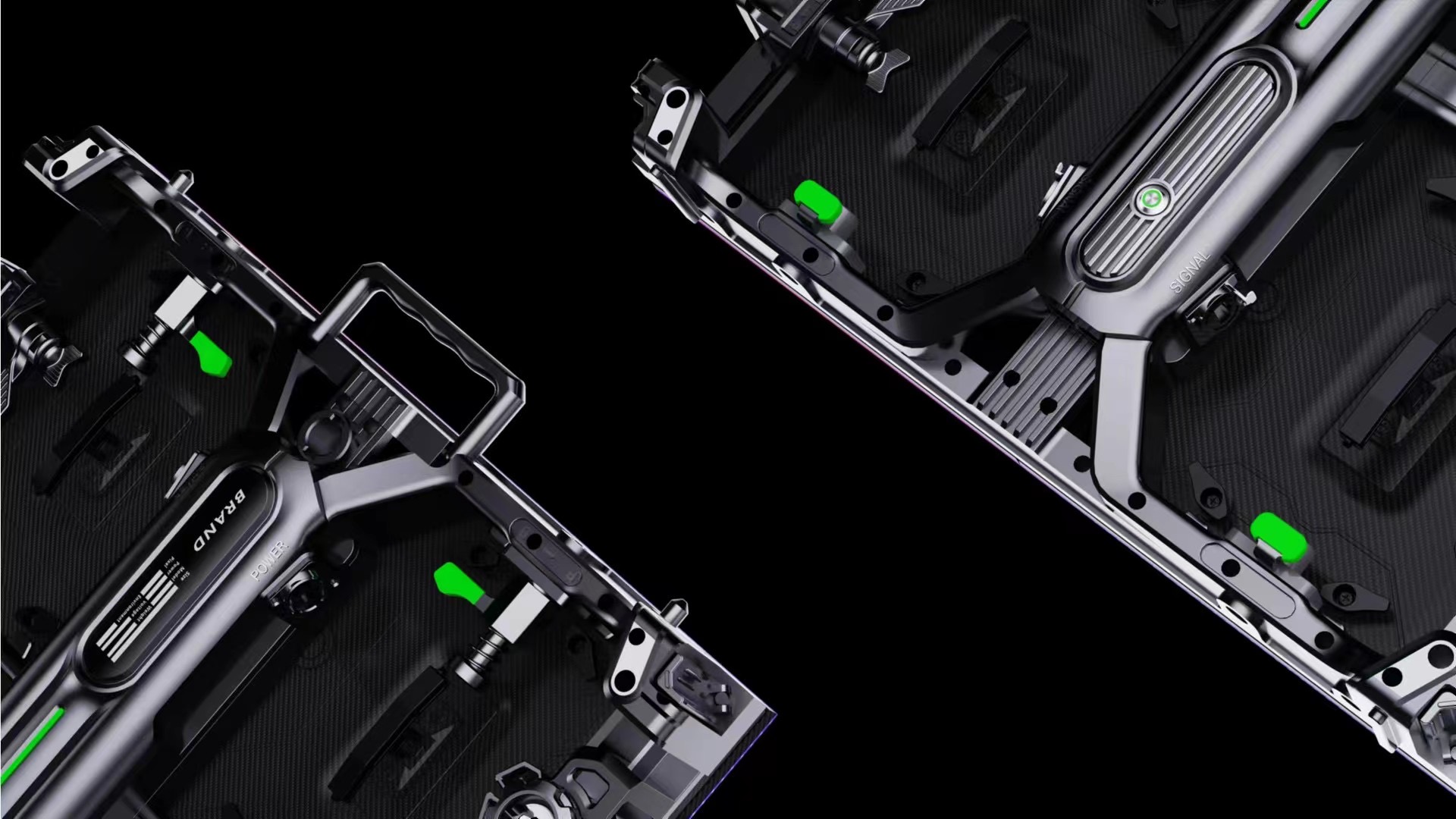

    aluminum die casting cabinet

    front service cabinet design

    compatible with all kinds of indoor and outdoor pixel pitch

    curved lock supported

    45 degree rectangle display supported

    enquiry
    • Description
    • specification

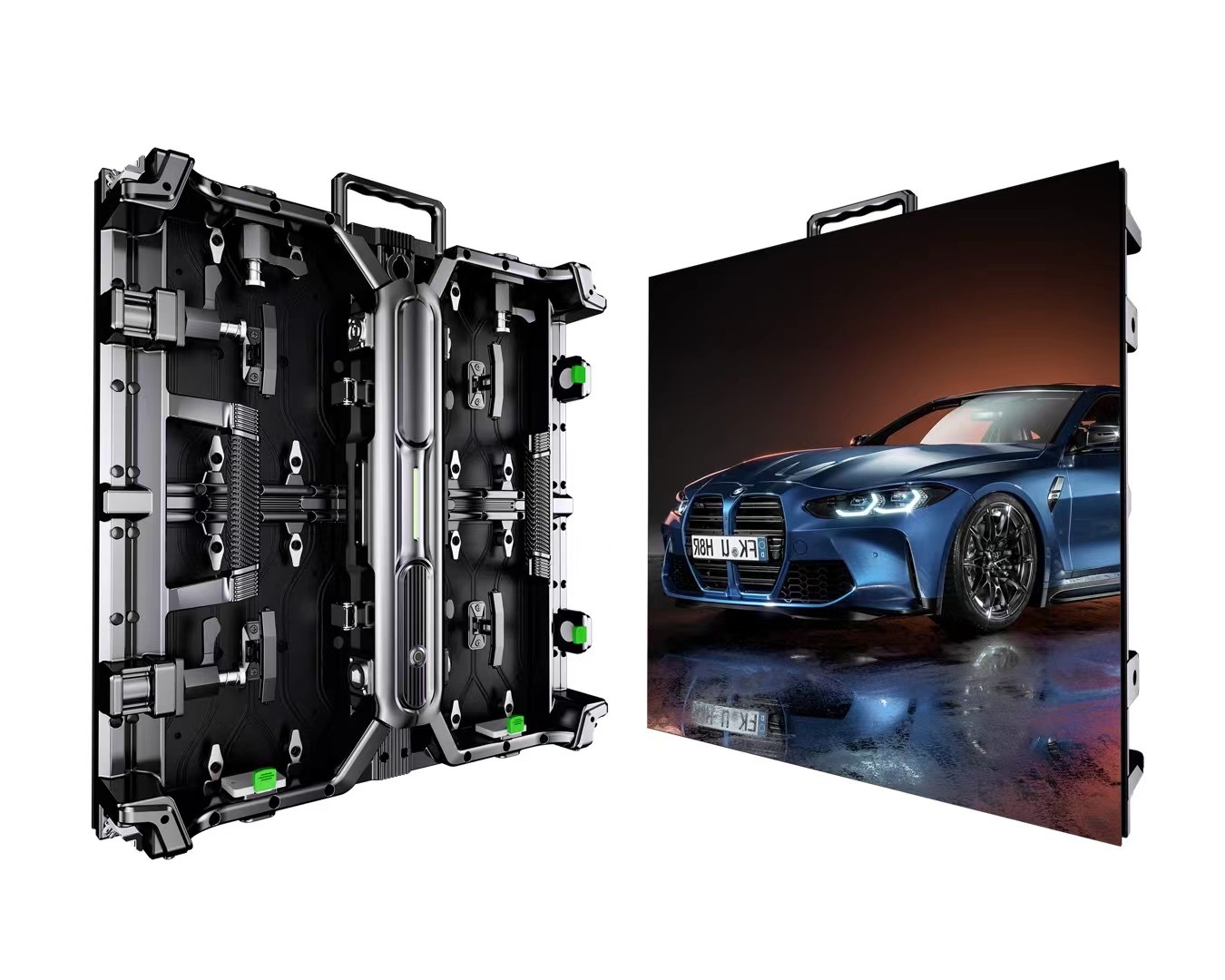

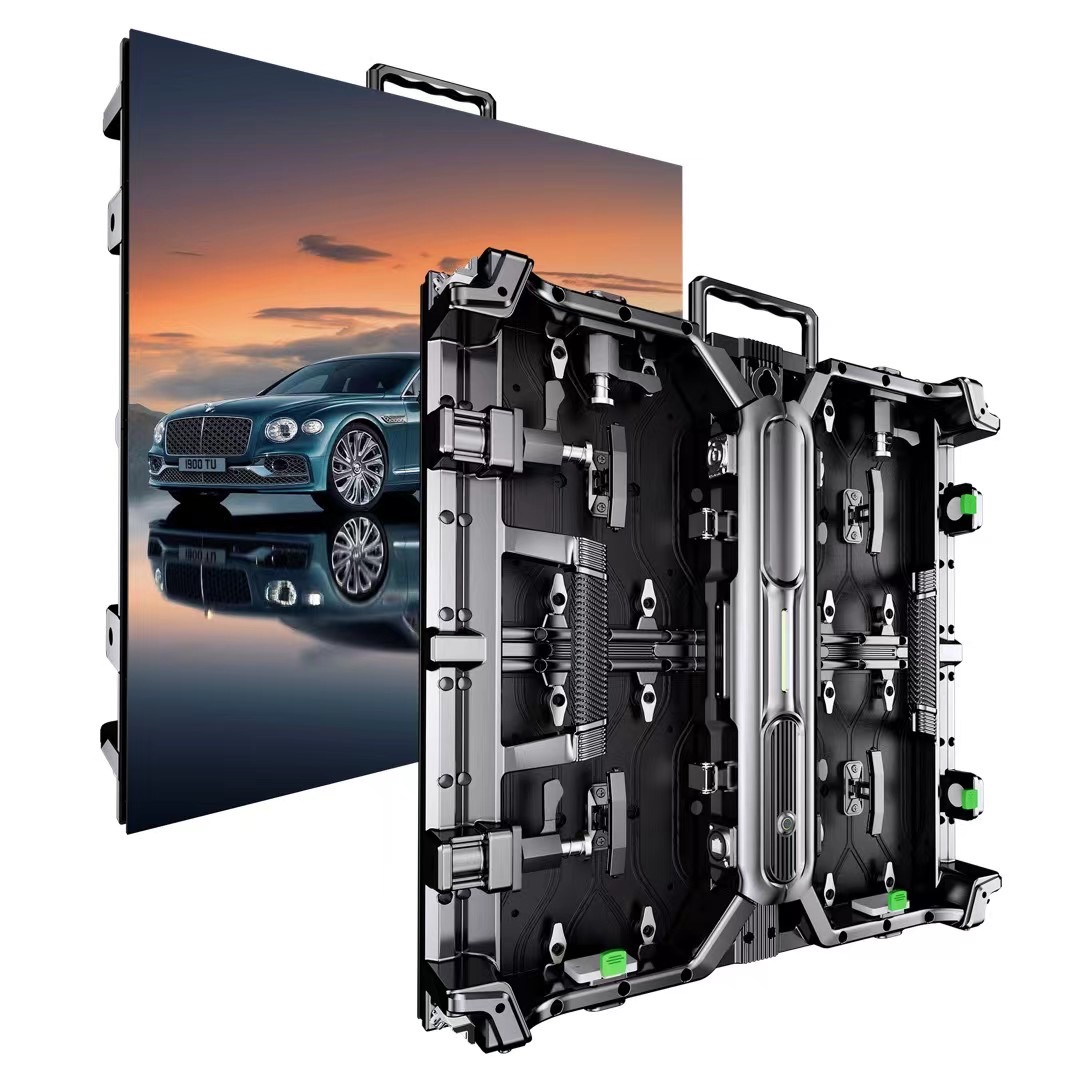

    ATL-B series event rental LED display cabinet design is a new design compatible with all kinds of indoor and outdoor pixel pitch.

    neat and clean cabinet design

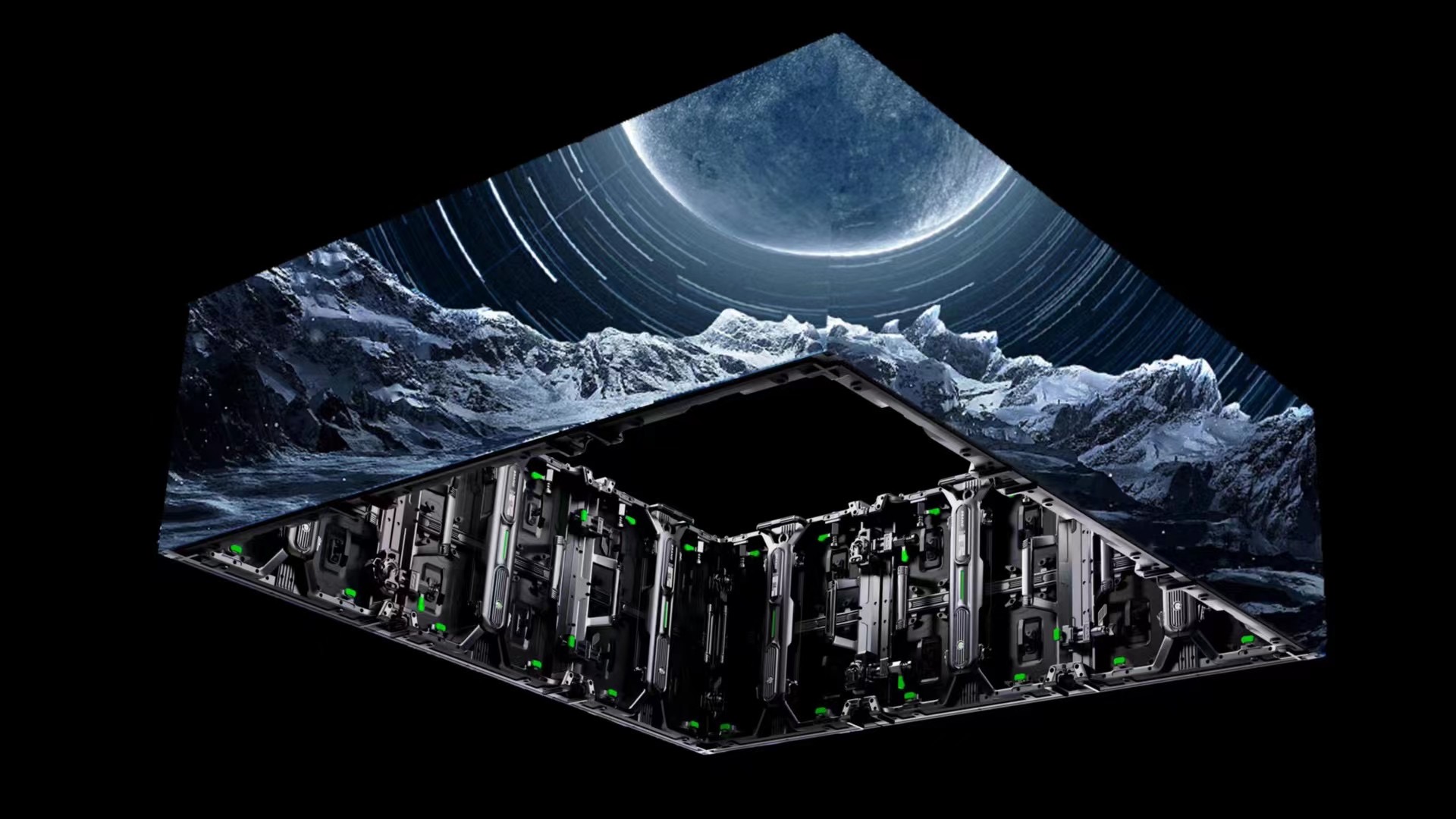

    support two sides 45 degree cut to form cube shape layout

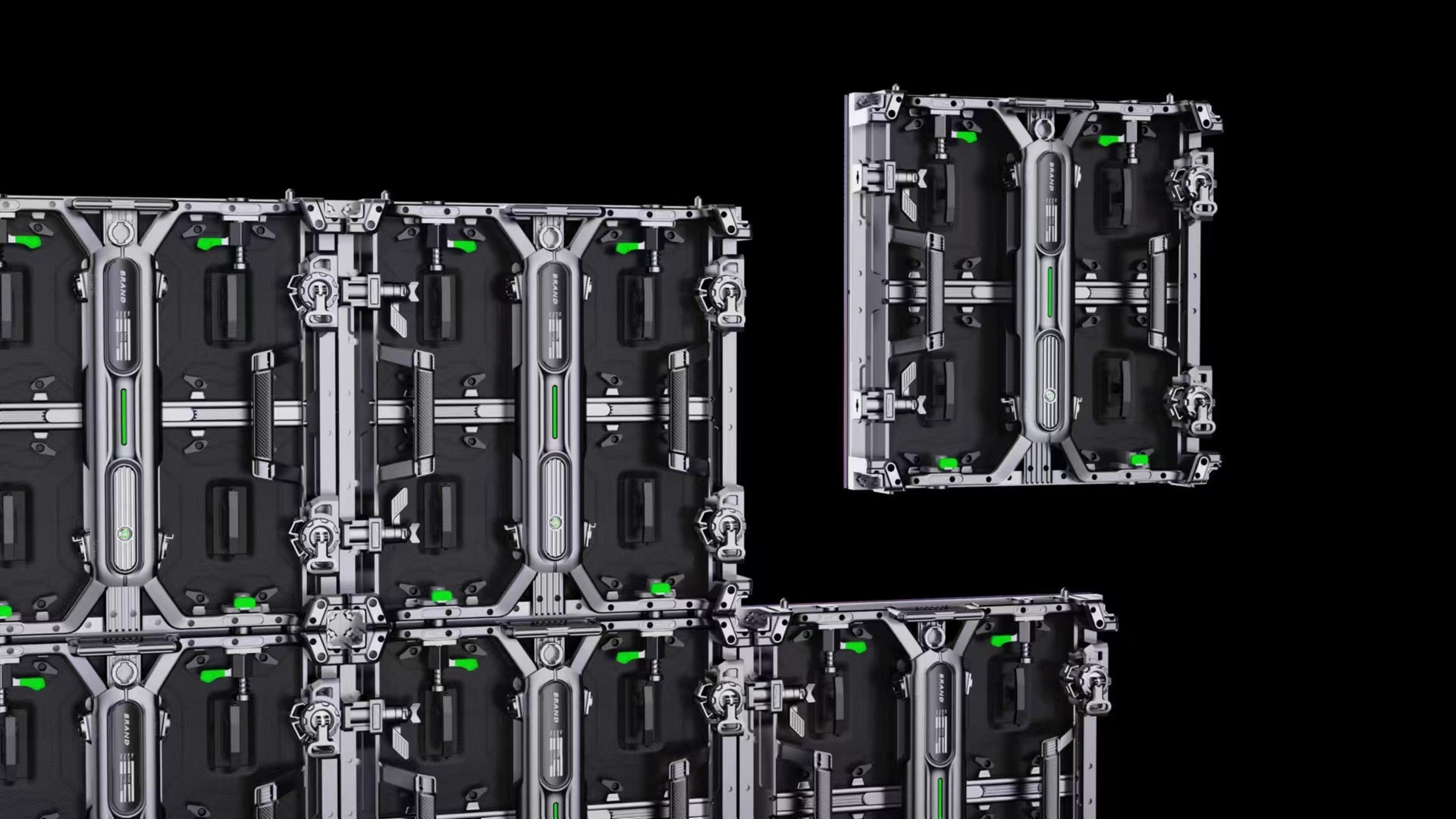

    offset free assemble for special shape displays

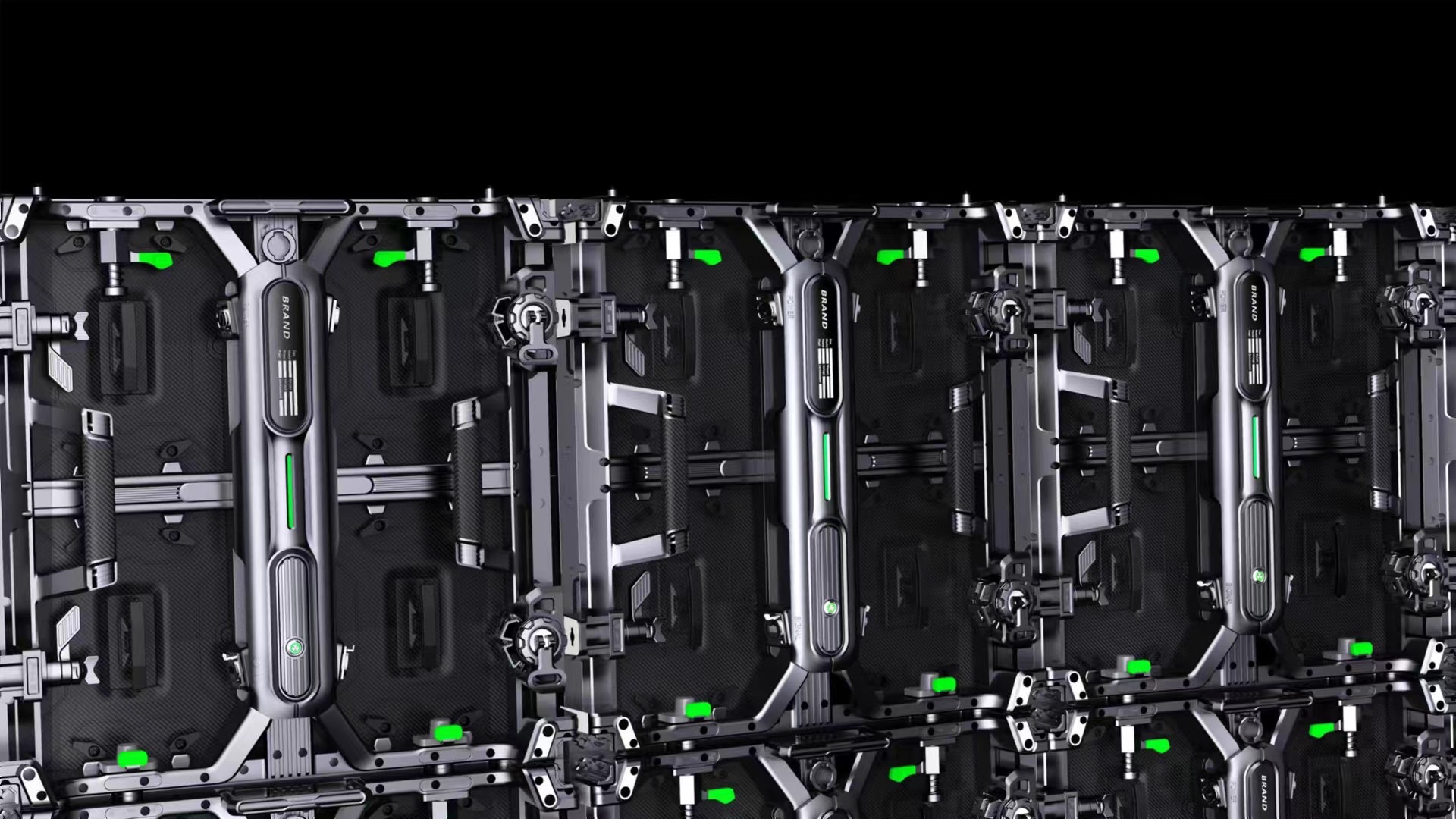

    angle adjustable side lock supported to form curve shape LED displays

    500*500mm event rental led display Series Indoor Models
    Model P1.95-1/32 scan indoor P2.604-1/32 scan indoor P2.976-1/28 scan indoor P3.91-1/16 scan indoor
    Pixel configuration SMD1515 black led lamp SMD1515 or SMD2121 black led lamp SMD1515 or SMD2121 black led lamp SMD2121 black led lamp
    Pixel pitch 1.95mm 2.604mm 2.976mm 3.91mm
    Scan rate 1/32 scanning, constant current 1/32 scanning, constant current 1/28 scanning, constant current 1/16 scanning, constant current
    Module size （W×H) 250*250MM 250*250MM 250*250MM 250*250MM
    Resolution per module W 128 x H 128 pixels W 96 x H 96 pixels W 84 x H 84pixels W 64 x H 64pixels
    Standard cabinet dimension(W×H×D) 500×500×85mm 500×500×85mm 500×500×85mm 500×500×85mm
    Pixel resolution/cabinet (W×H) 256 x 256pixels 192 x 192pixels 168 x 168pixels 128 x 128pixels
    Resolution/sqm 262,144dots/㎡ 147,456 dots/㎡ 112,896 dots/㎡ 65,536dots/㎡
    Minimum viewing distance Minimum 1.9 meters Minimum 2.6 meters Minimum 2.9 meters Minimum 3.9 meters
    Brightness 900CD/M2 900(SMD1515)-1200CD/M2 900(SMD1515)-1200CD/M2 1200CD/M2
    Gray scale 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps
    Color Number 281trillion 281trillion 281trillion 281trillion
    Display Mode Synchronous with video source Synchronous with video source Synchronous with video source Synchronous with video source
    Refresh rate ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ
    Viewing angle(degree) H/160,V/140 H/160,V/140 H/160,V/140 H/160,V/140
    Temperature range -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃
    Ambient Humidity 10%-99% 10%-99% 10%-99% 10%-99%
    Service access front and rear front and rear front and rear front and rear
    Standard cabinet weight 7.5kgs/cabinet 7.5kgs/cabinet 7.5kgs/cabinet 7.5kgs/cabinet
    Max.Power Consumption Max: 150w/panel Max: 150w/panel Max: 150w/panel Max: 150w/panel
    Protection Level Front/rear: IP43 Front/rear: IP43 Front/rear: IP43 Front/rear: IP43
    Lifetime to 50% brightness 75,000hr 75,000hr 75,000hr 75,000hr
    LED Failure Rate <0,00001 <0,00001 <0,00001 <0,00001
    MTBF > 10.000 hours > 10.000 hours > 10.000 hours > 10.000 hours
    Input power cable AC90-264V 50/60HZ AC90-264V 50/60HZ AC90-264V 50/60HZ AC90-264V 50/60HZ
    Signal input DVI  HDMI DVI  HDMI DVI  HDMI DVI  HDMI
    500I 500*500mm event rental led display Series outdoor Models
    Model P2.604-1/24 scan outdoor P2.976-1/28 scan outdoor P3.91-1/16 scan outdoor P3.91-1/8 scan outdoor
    Pixel configuration SMD1415 LED lamp SMD1415 LED lamp SMD1921 LED lamp SMD1921 LED lamp
    Pixel pitch 2.604mm 2.976mm 3.91mm 3.91mm
    Scan rate 1/24 scanning, constant current 1/28 scanning, constant current 1/16 scanning, constant current 1/8 scanning, constant current
    Module size （W×H) 250*250MM 250*250MM 250*250MM 250*250MM
    Resolution per module W 96x H 96pixels W 84 x H 84pixels W 64 x H 64pixels W 64 x H 64pixels
    Standard cabinet dimension(W×H×D) 500×500×85mm 500×500×85mm 500×500×85mm 500×500×85mm
    Pixel resolution/cabinet (W×H) 128 x 128 pixels 168 x 168pixels 128 x 128 pixels 128 x 128 pixels
    Resolution/sqm 65,536dots/㎡ 112,896 dots/㎡ 65,536dots/㎡ 65,536dots/㎡
    Minimum viewing distance Minimum 3.9 meters Minimum 2.9 meters Minimum 3.9 meters Minimum 3.9 meters
    Brightness 4500CD/M2 4500CD/M2 4500CD/M2 6500CD/M2
    Gray scale 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps
    Color Number 281trillion 281trillion 281trillion 281trillion
    Display Mode Synchronous with video source Synchronous with video source Synchronous with video source Synchronous with video source
    Refresh rate ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ
    Viewing angle(degree) H/160,V/140 H/160,V/140 H/160,V/140 H/160,V/140
    Temperature range -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃
    Ambient Humidity 10%-99% 10%-99% 10%-99% 10%-99%
    Service access front and rear front and rear front and rear front and rear
    Standard cabinet weight 8.5kgs/cabinet 8.5kgs/cabinet 8.5kgs/cabinet 8.5kgs/cabinet
    Max.Power Consumption Max: 240w/panel Max: 240w/panel Max: 240w/panel Max: 240w/panel
    Protection Level Front: IP65 rear:IP54 Front: IP65 rear:IP54 Front: IP65 rear:IP54 Front: IP65 rear:IP54
    Lifetime to 50% brightness 75,000hr 75,000hr 75,000hr 75,000hr
    LED Failure Rate <0,00001 <0,00001 <0,00001 <0,00001
    MTBF > 10.000 hours > 10.000 hours > 10.000 hours > 10.000 hours
    Input power cable AC90-264V 50/60HZ AC90-264V 50/60HZ AC90-264V 50/60HZ AC90-264V 50/60HZ
    Signal input DVI  HDMI DVI  HDMI DVI  HDMI DVI  HDMI
