Event rental led display

» Event rental led display

    • 500X series indoor LED display

    CATEGORY AND TAGS:
    Event rental led display, Fixed LED Display

    P1.95, P2.604, P3.91, P4.8

    Indoor fixed installation.

    total front service, front installation.

    enquiry
    • Description
    • specification

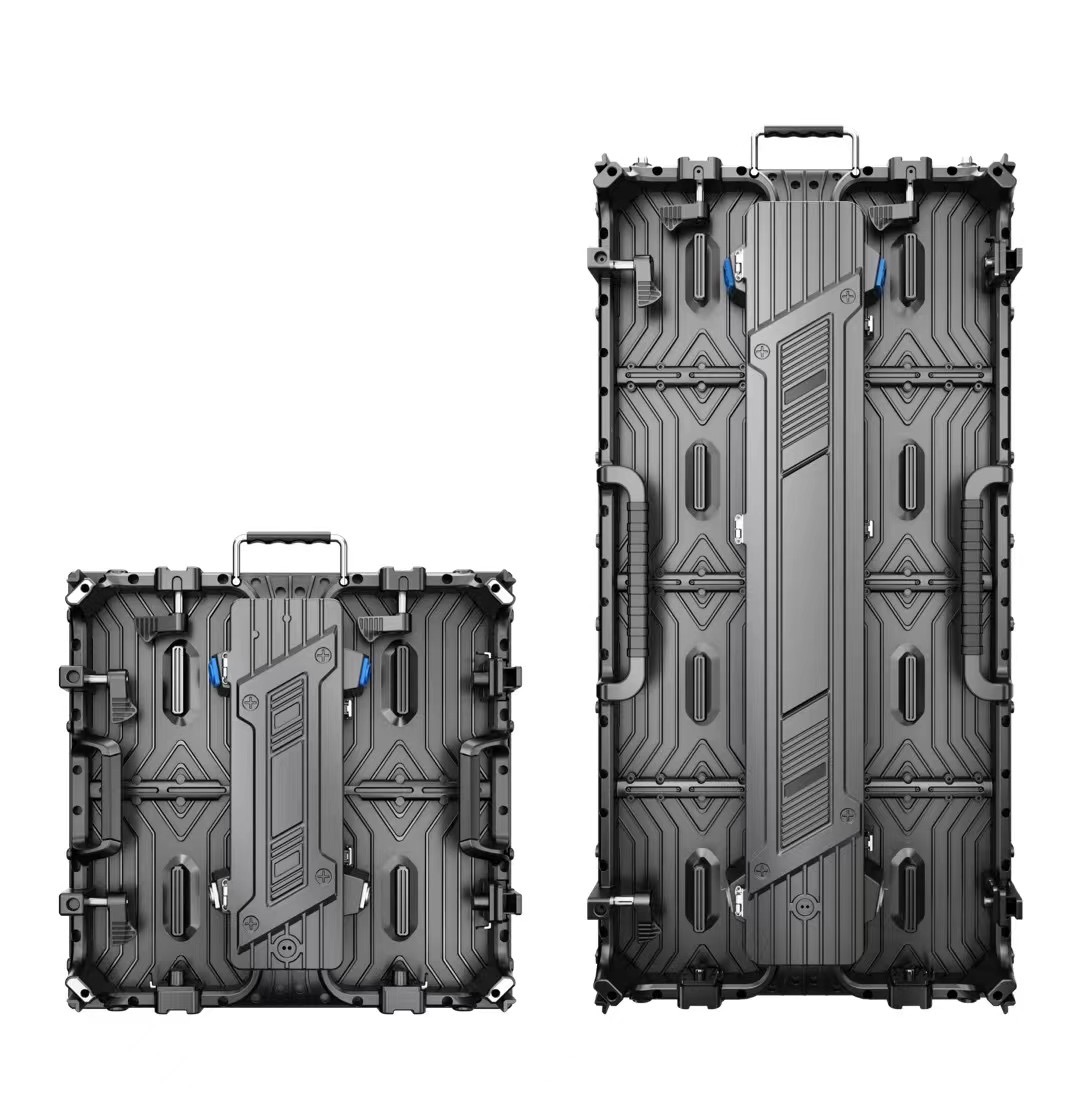

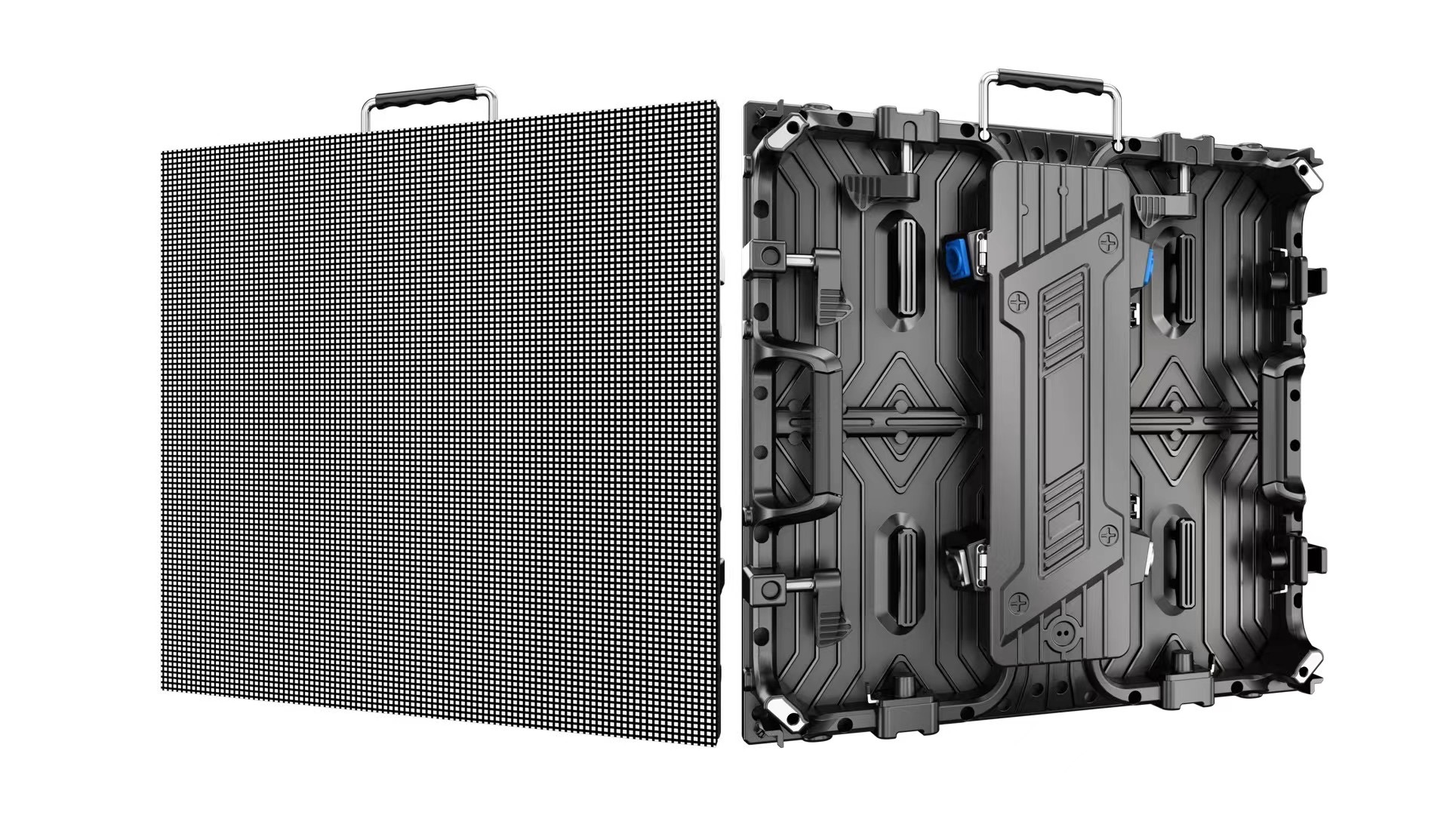

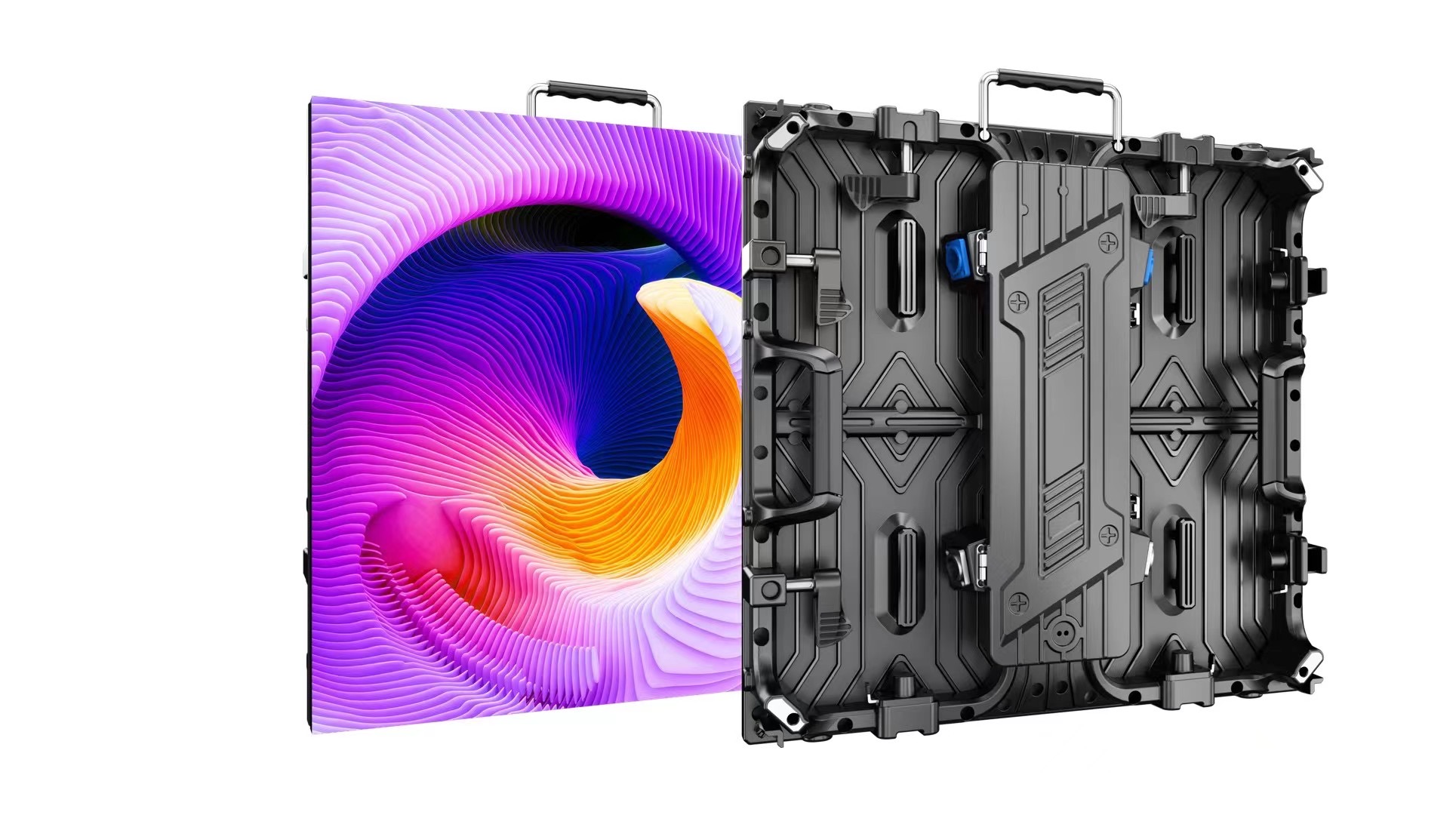

    500X series LED display is designed for indoor wall mount front service and front installation applications.

    the bolts can be inserted from the front. and all parts are front service.

    It is suitable for the common rental display models such as P1.95, P2.6, P3.91, P4.8 to be used for indoor fixed installations.

    and the display ratio can be 1:1, 16:9, 4:3 by such 500*500 or 500*1000mm cabinet size.

    Outdoor series

    Model P2.604-1/24 scan outdoor P2.976-1/28 scan outdoor P3.91-1/16 scan outdoor P3.91-1/8 scan outdoor
    Pixel configuration SMD1415 LED lamp SMD1415 LED lamp SMD1921 LED lamp SMD1921 LED lamp
    Pixel pitch 2.604mm 2.976mm 3.91mm 3.91mm
    Scan rate 1/24 scanning, constant current 1/28 scanning, constant current 1/16 scanning, constant current 1/8 scanning, constant current
    Module size （W×H) 250*250MM 250*250MM 250*250MM 250*250MM
    Resolution per module W 96x H 96pixels W 84 x H 84pixels W 64 x H 64pixels W 64 x H 64pixels
    Standard cabinet dimension(W×H×D) 500×500×85mm 500×500×85mm 500×500×85mm 500×500×85mm
    Pixel resolution/cabinet (W×H) 128 x 128 pixels 168 x 168pixels 128 x 128 pixels 128 x 128 pixels
    Resolution/sqm 65,536dots/㎡ 112,896 dots/㎡ 65,536dots/㎡ 65,536dots/㎡
    Minimum viewing distance Minimum 3.9 meters Minimum 2.9 meters Minimum 3.9 meters Minimum 3.9 meters
    Brightness 4500CD/M2 4500CD/M2 4500CD/M2 6500CD/M2
    Gray scale 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps
    Color Number 281trillion 281trillion 281trillion 281trillion
    Display Mode Synchronous with video source Synchronous with video source Synchronous with video source Synchronous with video source
    Refresh rate ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ
    Viewing angle(degree) H/160,V/140 H/160,V/140 H/160,V/140 H/160,V/140
    Temperature range -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃
    Ambient Humidity 10%-99% 10%-99% 10%-99% 10%-99%
    Service access front and rear front and rear front and rear front and rear
    Standard cabinet weight 8.5kgs/cabinet 8.5kgs/cabinet 8.5kgs/cabinet 8.5kgs/cabinet
    Max.Power Consumption Max: 240w/panel Max: 240w/panel Max: 240w/panel Max: 240w/panel
    Protection Level Front: IP65 rear:IP54 Front: IP65 rear:IP54 Front: IP65 rear:IP54 Front: IP65 rear:IP54
    Lifetime to 50% brightness 75,000hr 75,000hr 75,000hr 75,000hr
    LED Failure Rate <0,00001 <0,00001 <0,00001 <0,00001
    MTBF > 10.000 hours > 10.000 hours > 10.000 hours > 10.000 hours
    Input power cable AC90-264V 50/60HZ AC90-264V 50/60HZ AC90-264V 50/60HZ AC90-264V 50/60HZ
    Signal input DVI  HDMI DVI  HDMI DVI  HDMI DVI  HDMI

    Indoor series

    Model P1.95-1/32 scan indoor P2.604-1/32 scan indoor P2.976-1/28 scan indoor P3.91-1/16 scan indoor
    Pixel configuration SMD1515 black led lamp SMD1515 or SMD2121 black led lamp SMD1515 or SMD2121 black led lamp SMD2121 black led lamp
    Pixel pitch 1.95mm 2.604mm 2.976mm 3.91mm
    Scan rate 1/32 scanning, constant current 1/32 scanning, constant current 1/28 scanning, constant current 1/16 scanning, constant current
    Module size （W×H) 250*250MM 250*250MM 250*250MM 250*250MM
    Resolution per module W 128 x H 128 pixels W 96 x H 96 pixels W 84 x H 84pixels W 64 x H 64pixels
    Standard cabinet dimension(W×H×D) 500×500×85mm 500×500×85mm 500×500×85mm 500×500×85mm
    Pixel resolution/cabinet (W×H) 256 x 256pixels 192 x 192pixels 168 x 168pixels 128 x 128pixels
    Resolution/sqm 262,144dots/㎡ 147,456 dots/㎡ 112,896 dots/㎡ 65,536dots/㎡
    Minimum viewing distance Minimum 1.9 meters Minimum 2.6 meters Minimum 2.9 meters Minimum 3.9 meters
    Brightness 900CD/M2 900(SMD1515)-1200CD/M2 900(SMD1515)-1200CD/M2 1200CD/M2
    Gray scale 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps 16 bit, 65536 steps
    Color Number 281trillion 281trillion 281trillion 281trillion
    Display Mode Synchronous with video source Synchronous with video source Synchronous with video source Synchronous with video source
    Refresh rate ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ
    Viewing angle(degree) H/160,V/140 H/160,V/140 H/160,V/140 H/160,V/140
    Temperature range -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃ -20℃ to +60℃
    Ambient Humidity 10%-99% 10%-99% 10%-99% 10%-99%
    Service access front and rear front and rear front and rear front and rear
    Standard cabinet weight 7.5kgs/cabinet 7.5kgs/cabinet 7.5kgs/cabinet 7.5kgs/cabinet
    Max.Power Consumption Max: 150w/panel Max: 150w/panel Max: 150w/panel Max: 150w/panel
    Protection Level Front/rear: IP43 Front/rear: IP43 Front/rear: IP43 Front/rear: IP43
    Lifetime to 50% brightness 75,000hr 75,000hr 75,000hr 75,000hr
    LED Failure Rate <0,00001 <0,00001 <0,00001 <0,00001
    MTBF > 10.000 hours > 10.000 hours > 10.000 hours > 10.000 hours
    Input power cable AC90-264V 50/60HZ AC90-264V 50/60HZ AC90-264V 50/60HZ AC90-264V 50/60HZ
    Signal input DVI  HDMI DVI  HDMI DVI  HDMI DVI  HDMI
