640-480mm X series LED display
CATEGORY AND TAGS:Fixed LED Display

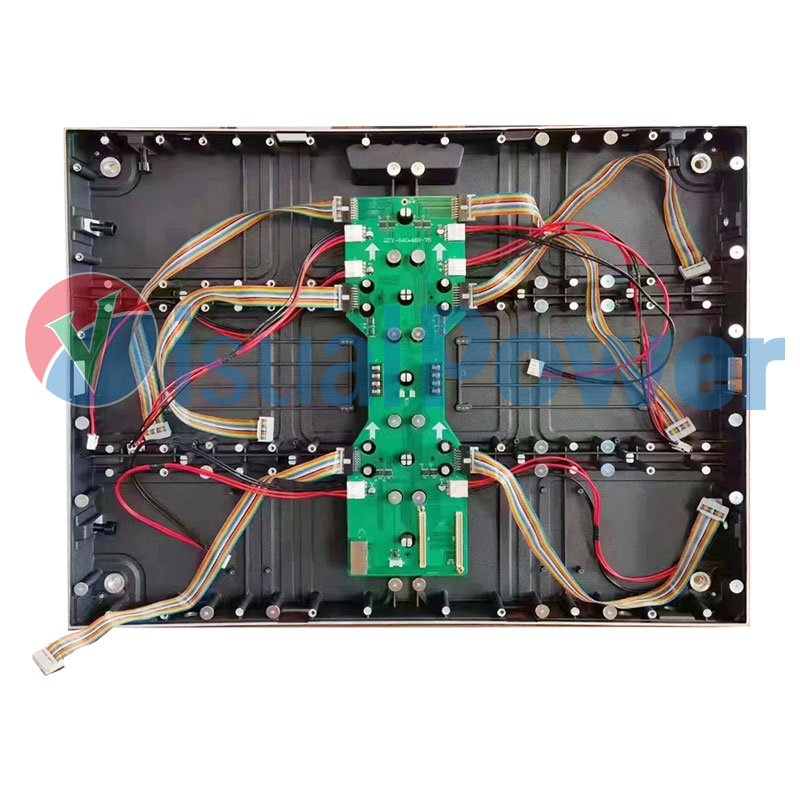

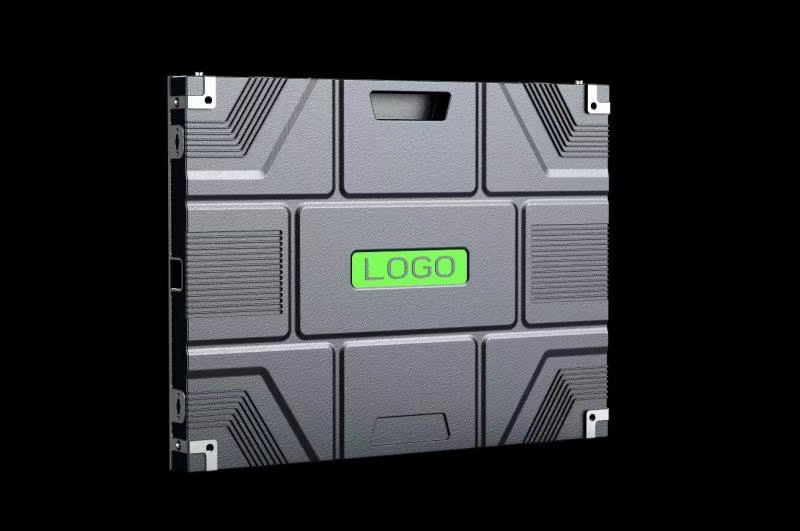

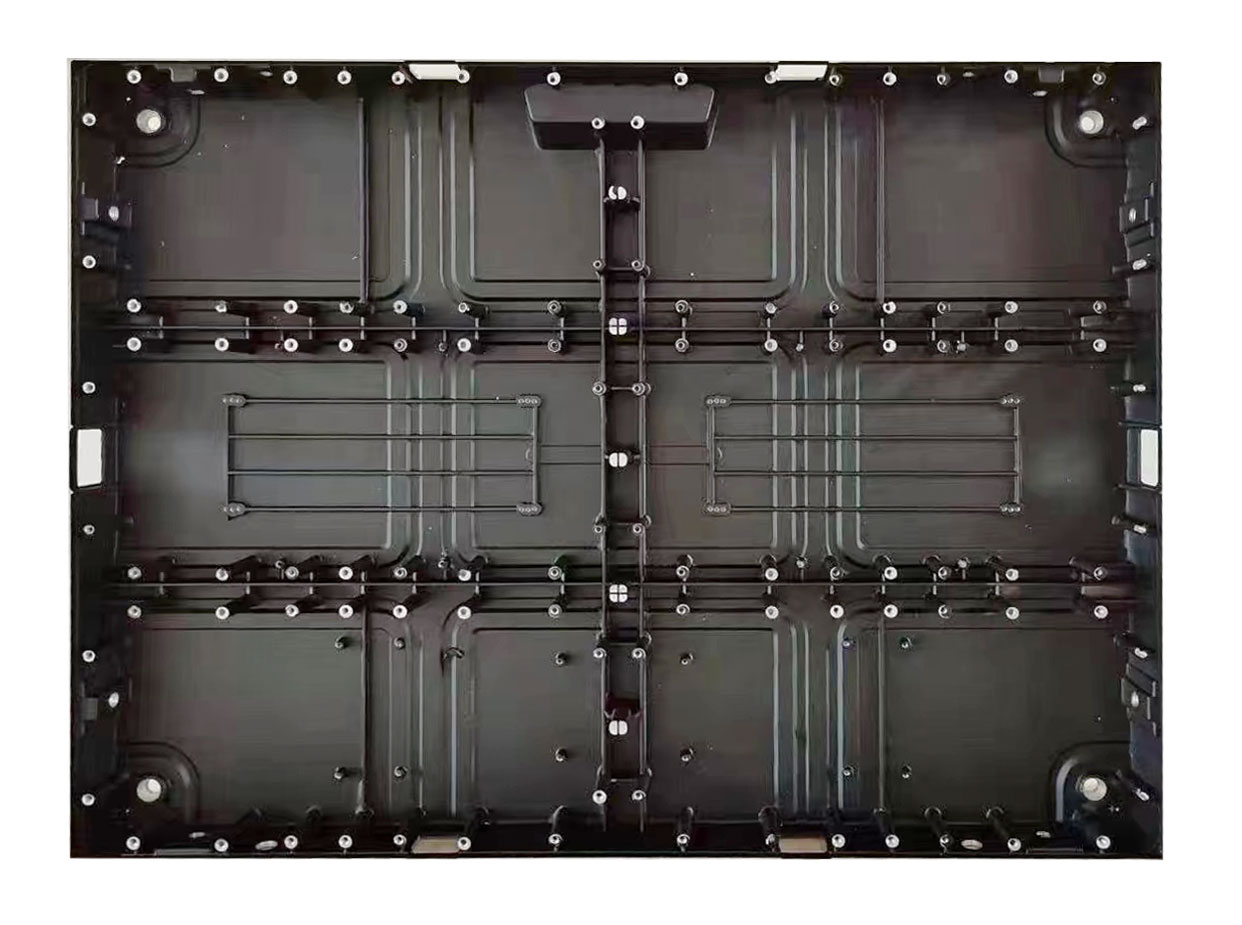

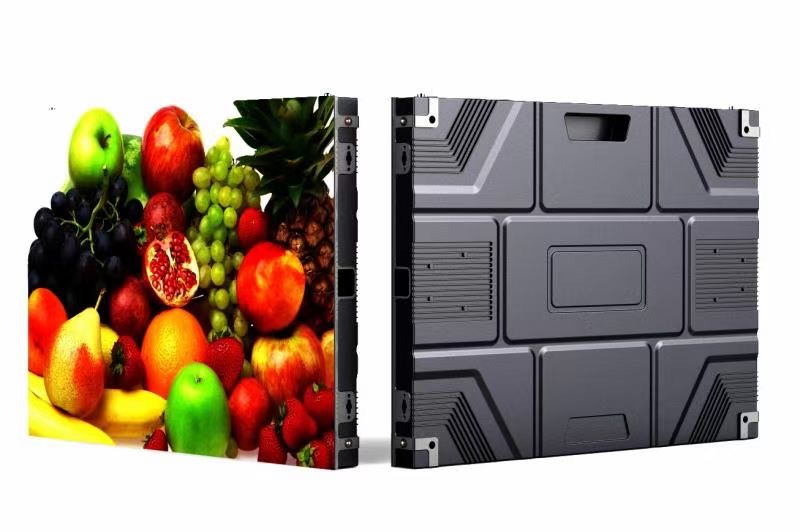

640*480 X series indoor die casting aluminum cabinet supports complete front service and front installation.
It is compatible with most indoor common pixel pitch LED displays including P1.25, P1.53, P1.667, P1.86, P2, P2.5, P3.076.

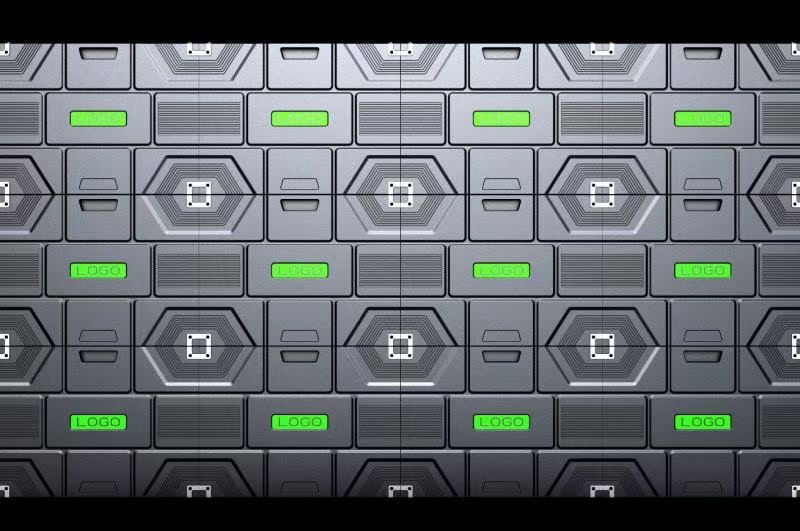

Suitable for most indoor large video wall and signage application
- Description
- Specification
This is a new 640*480mm aluminum die casting cabinet design for different indoor pixel pitch LED displays.
| Model | P1.25 | P1.53 | P1.667 | P1.86 | P2 | P2.5 | P3.076 |
| LED lamp | SMD1010 | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2121 | SMD2121 |
| Pixel pitch（mm） | 1.2500 | 1.5380 | 1.6670 | 1.8600 | 2.0 | 2.5 | 3.076 |
| LED Lamp brightness（mcd) | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd | R:20-26mcd G:30-38mcd B:6-8mcd |
| LED wavelength(nm) | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm | 619-624nm 522-526nm 469-474nm |
| Pixel density （pixels/m2） |
640,000 | 422,500 | 360,000 | 288,900 | 250,000 | 160,000 | 105,688 |
| Module size（mm） | 320（W）×160（H） | 320（W）×160（H） | 320（W）×160（H） | 320（W）×160（H） | 320（W）×160（H） | 320（W）×160（H） | 320（W）×160（H） |
| Module resolution（W×H） | 256×128 | 208×104 | 192×96 | 172×86 | 160×80 | 128×64 | 104×52 |
| Module weight（kg） | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
| Module Max. power（W） | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Module layout（W×H） | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 |
| Cabinet size（mm） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） | 640（W）×480（H）×70（D） |
| Cabinet resolution（W×H） | 512×384 | 416×312 | 384×288 | 344×258 | 320×240 | 256×192 | 208×156 |
| Cabinet Area（m2） | 0.3072 | 0.3072 | 0.3072 | 0.3072 | 0.3072 | 0.3072 | 0.3072 |
| Cabinet weight（kg） | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Flatness（mm） | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Maintenance way | Front service | Front service | Front service | Front service | Front service | Front service | Front service |
| Cabinet Material | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting | Aluminum die casting |
| Brightness calibration | support | support | support | support | support | support | support |
| Color temperature calibration | support | support | support | support | support | support | support |
| white balance brightness（nits） | ≥650（at 6500K）adjustable | ≥650（at 6500K）adjustable | ≥650（at 6500K）adjustable | ≥650（at 6500K）adjustable | ≥650（at 6500K）adjustable | ≥800（at 6500K）adjustable | ≥800（at 6500K）adjustable |
| color temperature（K） | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable | 3200—9300 adjustable |
| Viewing angle（horizental/Vertical°） | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| lighting center offset | <3% | <3% | <3% | <3% | <3% | <3% | <3% |
| brightness/color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| Contrast ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Max. power（W/m2） | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 |
| Ave. power（W/m2） | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
| Power supply | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） | AC90~264V,frequency 47-63（Hz） |
| Frame frequency（Hz） | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 | 50&60 |
| Scan rate | constant current,1/30 scan | constant current,1/30 scan | constant current,1/30 scan | constant current,1/30 scan | constant current,1/30 scan | constant current,1/32scan | constant current,1/32scan |
| Gray scale | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 | 65536 |
| Refresh rate（Hz） | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| color depth | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Video display | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K | 2K, 4K |
| working temperature/Humidity（℃/RH） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） |
| Storage temperature/humidity（℃/RH） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） | -20 – 60 / 10%-85%RH（no condensation） |
